Edge Banding Tape for Plywood, MDF and Block Board
What Is Edge Banding Tape?

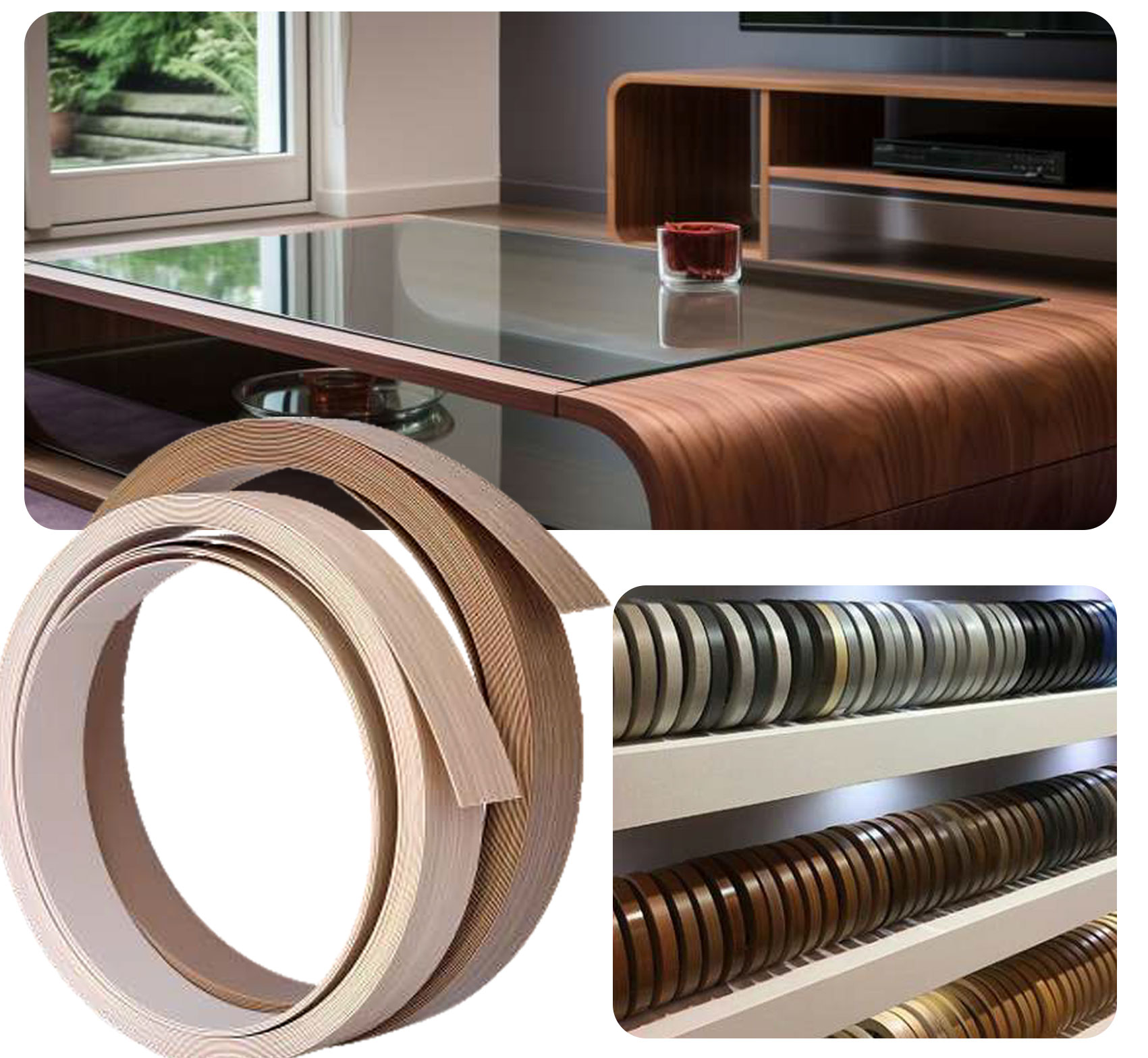

Edge banding tape is a thin decorative strip applied to the exposed cut edges of plywood, MDF, block board and laminated panels. It hides the raw core, seals the edge against moisture and chipping, and finishes the panel so it reads the same from every angle. Advance EdgeMatch is a PVC edge banding tape supplied in widths from 22mm to 55mm and thicknesses from 0.8mm to 2mm, in over 350 designs matched to Advance laminate shades.
Advance EdgeMatch: Tough Edge, True Match
What Advance EdgeMatch Is Made Of?

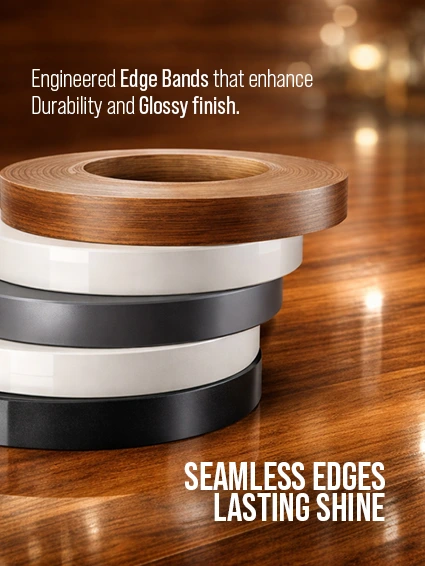

Advance EdgeMatch is a PVC edge banding tape built for furniture panels that get handled every day. The strip covers bare edges on plywood, MDF, particle board, block board and laminated panels, and protects them from moisture, impact and daily wear.
- PVC base polymer for consistent flexibility around curves and internal radii
- Controlled micron-size calcium carbonate filler for stiffness and dimensional stability
- Non-toxic Ca/Zn stabiliser system for long life and heat durability
- Dual-coat adhesion promoter on the backside for strong glue grip
- Scratch-resistant, UV-stable surface coating that holds its colour
Each roll is calibrated using digital laser alignment, which is what keeps the edge straight through a high-speed banding machine. The tape suits modular furniture, wardrobes, kitchens, office systems and interior fixtures.
Advance EdgeMatch Specifications
Advance EdgeMatch is supplied in eleven standard width and thickness combinations, with roll length made to order. Anything outside this list can be discussed with the mill.
| Specification | Value |
|---|---|
| Material | PVC edge banding tape, calcium carbonate reinforced |
| Width range | 22mm to 55mm, tolerance ±0.45mm |
| Thickness range | 0.8mm to 2mm, stability ±0.05mm |
| Standard sizes | 11 width and thickness combinations |
| Roll length | 25m to 300m, made to order |
| Density | 1.45 to 1.60 g/cm³ |
| Finishes | Plain, wood grain, textured, high gloss |
| Designs available | 350 |
| Stabiliser system | Non-toxic calcium and zinc, lead free |
| Backside treatment | Dual-coat adhesion promoter primer |
Standard Sizes
| Width | Thickness | Width | Thickness |
|---|---|---|---|
| 22mm | 0.80mm | 30mm | 0.80mm |
| 22mm | 1.00mm | 30mm | 2.00mm |
| 22mm | 2.00mm | 45mm | 0.80mm |
| 23mm | 1.30mm | 45mm | 2.00mm |
| 25mm | 0.80mm | 55mm | 2.00mm |
| 25mm | 2.00mm |
Tested Properties
| Property | Specification | Test method |
|---|---|---|
| Density | 1.45 to 1.60 g/cm³ | EN ISO 1183-1:2004 |
| Adhesion | Cut edges completely smooth, no squares of the lattice detached | ISO 2409-2020 |
| Dimensional stability | Change in thickness 3%, change in mass 0.65% | ASTM D2126:2009 |
| Tensile strength | 29.90 MPa | ISO 527 |
| Tensile modulus | 248.4 MPa | ISO 527 |
| Impact strength | 4.7 kJ/m² | ISO 179-11 |
| Shore hardness | 70 | ISO 868-2013 |
| Peel strength | Min 10 to 15 N | After 24 hrs curing |
| Vicat softening temperature | 95.5°C | ISO 306:1994 |
| Heat resistance | No deformation up to 55 to 60°C | Visual evaluation |
| Flame retardancy | Self-extinguishing | UL 94 V-0/V-1 |
| Burning behaviour | Melts but does not sustain flame | Plastic drip without fire |
| Smoke emission | Reduced smoke | Compared to normal PVC |
| Colour stability | ≤ 1.0 | Batch to batch consistency |
| Chemical resistance | Resistant to mild acids and cleaners | Household grade |
| Thermal expansion | Low | ASTM D696 |
| Water absorption | ≤ 0.5%, no swelling or warping | ISO 62 |
| Gloss level | Matt or high gloss as required | Gloss meter |
How to Apply Advance EdgeMatch
Advance EdgeMatch is not pre-glued. It is designed for an edge banding machine that applies PVC based hot melt glue, and the figures below are the settings the tape is built around.
| Parameter | Range | Why it matters |
|---|---|---|
| Edge band temperature | 18 to 25°C, room temperature | Avoids cracking during feeding |
| Pre-heating | Optional slight warm up | Smooth bending in winter |
| Glue type | PVC based | Matched to the backside primer on the tape |
| Glue application temperature | 120°C | Proper melting and wetting |
| Trimming | No deformation during trimming | Holds edge shape |
| Hot air blower | Withstands the heat | No melting or softening |
| Flexibility during curing | Good, depends on thickness | Suits mild curves and internal radius |
| Colour stability during processing | No shade variation after heating | Uniform look after edge sealing |
| Dust free cutting | Yes | Less chipping and edge burning |
Matched to Advance Laminate Shades
Every EdgeMatch design is mapped to a specific Advance laminate shade, which is what the shade card is built around. You pick the laminate first, then look up the edge band code listed against it, instead of holding two samples up to the light and hoping they agree.
| EdgeMatch code | Shade | Matches Advance laminate |
|---|---|---|
| AE-7101 | Bright White (Matt) | 635, 1mm |
| AE-7102 | Super White (Matt) | 160 SF-Super White, 0.08mm |
| AE-5043 | Off White Metallic | 5064 Off White Metallic, 1mm |
| AE-5044 | Off White Leather | 4165 Off White Leather (USA) |

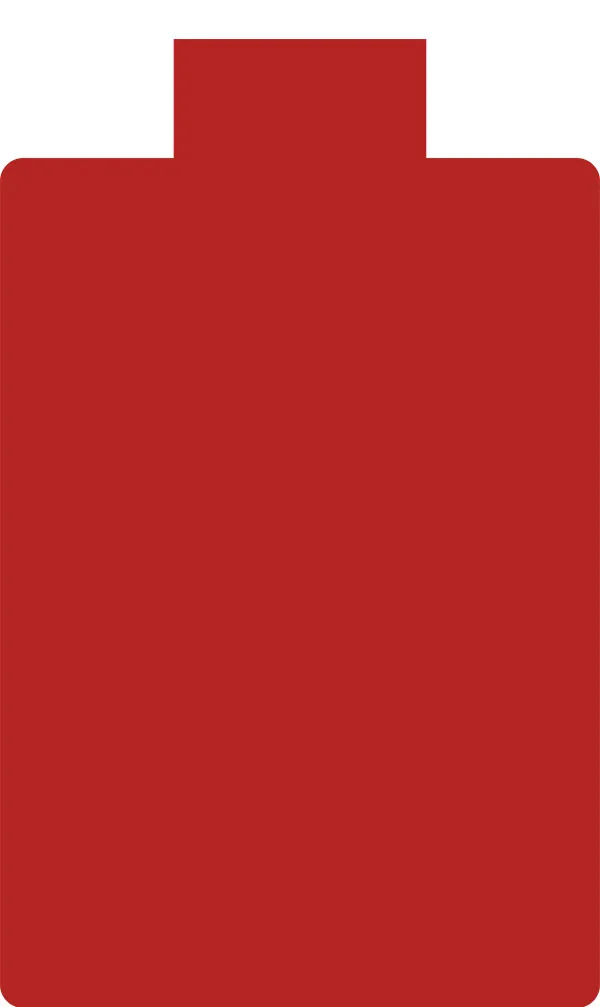

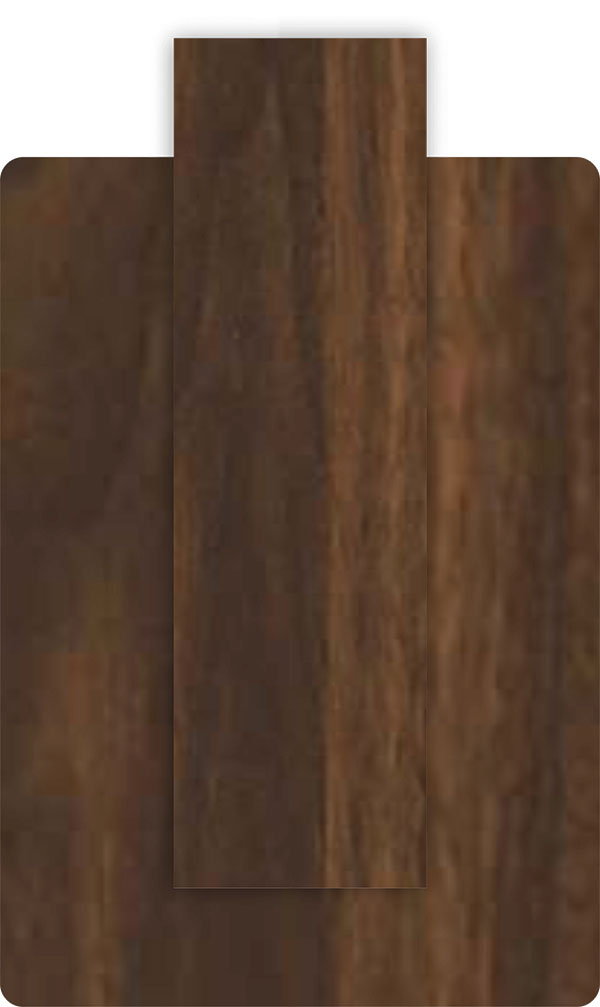

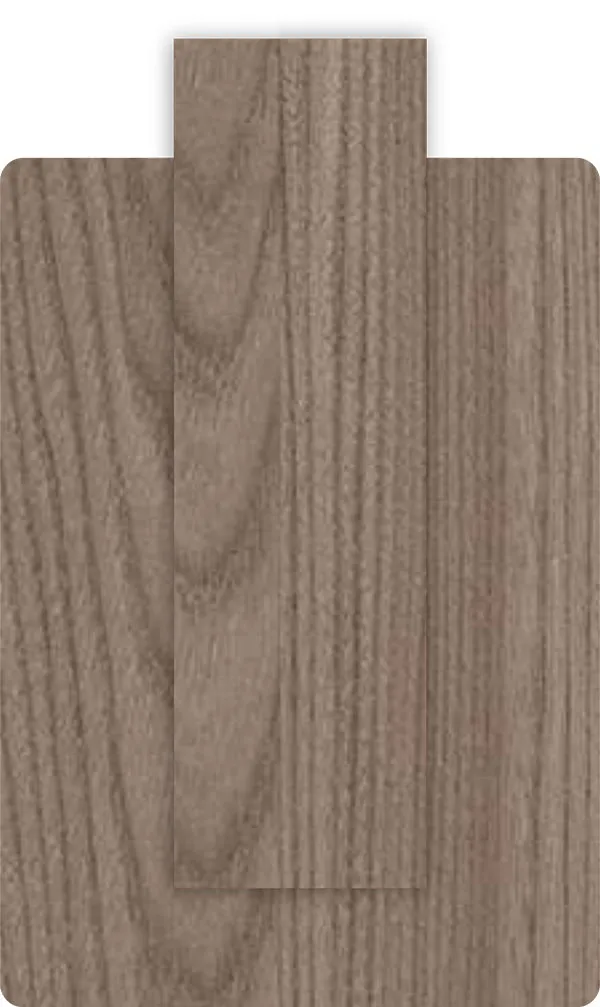

These four are a sample. The full shade card runs to over 350 designs across solid matt, metallic, wood grain and high gloss finishes, each one listed against the Advance laminate it matches. Explore the complete range in the EdgeMatch catalogue.
Open the EdgeMatch Catalogue
Safety & Compliance
Non-Toxic Printing Inks
The inks used for decoration and grain printing are UV-stable and free from harmful solvents, so the printed grain holds its colour instead of yellowing over the years.
Lead-Free Formulation
The stabiliser system is calcium and zinc based rather than lead based, which makes the tape 100% lead free. Lead stabilisers are the older and cheaper route in PVC, so it is worth asking any supplier which system they use.
Odour Controlled and Plasticizer Safe
The formulation keeps odour release to a minimum and uses non-phthalate plasticizers, which matters in wardrobes and closed cabinets where a panel stays shut for months.
Eco-Friendly Manufacturing
Production runs on low-waste, energy-efficient processes, with scrap material recycled back into the line rather than discarded.
Explore Our Advance EdgeMatch Catalogue
Frequently Asked Questions About Edge Banding Tape
What is edge banding tape used for?
Edge banding tape covers the exposed cut edge of a furniture panel. On plywood, MDF, block board or particle board, that cut edge shows the raw core and absorbs moisture. The tape seals it, protects it from chipping and daily impact, and gives the panel a finished face on all four sides.
Can edge banding tape be used on plywood?
Yes. PVC edge banding tape works on plywood, MDF, block board, particle board and laminated panels. On plywood it matters more than on most materials, because the exposed edge shows the layered core and that edge is where moisture gets into the panel first.
What sizes does Advance EdgeMatch edge banding tape come in?
Widths run from 22mm to 55mm with a tolerance of ±0.45mm, and thicknesses from 0.8mm to 2mm with a stability of ±0.05mm. There are 11 standard width and thickness combinations, including 22×0.8mm, 25x2mm, 30×0.8mm and 55x2mm. Roll length is made to order, anywhere from 25 to 300 metres.
Is edge banding tape pre-glued, or does glue go on separately?
Advance EdgeMatch is not pre-glued. It is designed for an edge banding machine that applies PVC based hot melt glue at 120°C. The back of the tape carries a dual-coat adhesion promoter primer, which is what gives the glue something to grip.
What temperature is needed to apply PVC edge banding tape?
Glue goes on at 120°C for proper melting and wetting. The tape itself should be at room temperature, 18 to 25°C, before it is fed into the machine, because a cold strip cracks on the bend. In winter a slight pre-heat helps it bend smoothly.
What is the difference between 0.8mm and 2mm edge banding tape?
Thickness decides how much impact the edge can take and how it looks. 0.8mm sits almost flush and suits shutters, shelves and visible panels where a thin line is wanted. 2mm is used where the edge gets knocked, such as table edges, drawer fronts and heavily used cabinet doors, and it takes a deeper radius during trimming.
Is PVC edge banding tape water resistant?
Water absorption is 0.5% or less under ISO 62, with no swelling or bubble formation, so the tape itself does not take up water. What it protects is the panel edge underneath, which is where moisture normally enters plywood or MDF. It is water resistant, not a substitute for specifying the right grade of board.
How do I match edge band tape to my laminate?
Every Advance EdgeMatch design is mapped to a specific Advance laminate shade in the shade card. Find the laminate code first, then look up the EdgeMatch code listed against it. There are over 250 designs across solid matt, metallic, wood grain and high gloss finishes.
