Advance Ply
Gold MMR25
- Home
- All Plywood Range
- Advance Ply Gold MMR25
- 15 Year Warranty
- IS 303 MR Grade
- HVRT Resin
- 25% More Moisture Resistance
- 8 Cycle @ 65°C
- Glue Line Protection
Thickness Selector
Back panels, drawer bottoms and lightweight interior backing panels
Partition panels, wall cladding and secondary furniture components
Internal shelves, cabinet partitions and storage furniture panels
Furniture shutters, doors and medium-duty interior furniture panels
Wardrobes, furniture carcasses, cabinets and premium interior furniture
Sheet sizes: 8×4 ft, 7×4 ft, 6×4 ft, 8×3 ft, 7×3 ft, 6×3 ft
- MR Grade
- IS 303:2024
- HVRT Resin
- 25% More Moisture Resistance
- 8 Cycle @ 65°C
- Glue Line Protection
Advance Ply Gold MMR25 is IS 303 MR Grade plywood made with HVRT resin and melamine fortified modified UF Resin MMR-25. It is designed for interior furniture applications where the plywood must perform reliably in changing humidity and temperature conditions.
Gold MMR25 provides 25% more moisture resistance than ordinary MR plywood and is tested for extra water resistance through 8 cycles at 65°C. This makes it suitable for wardrobes, cabinets, partitions, furniture carcasses, interior storage units and spaces exposed to seasonal humidity.

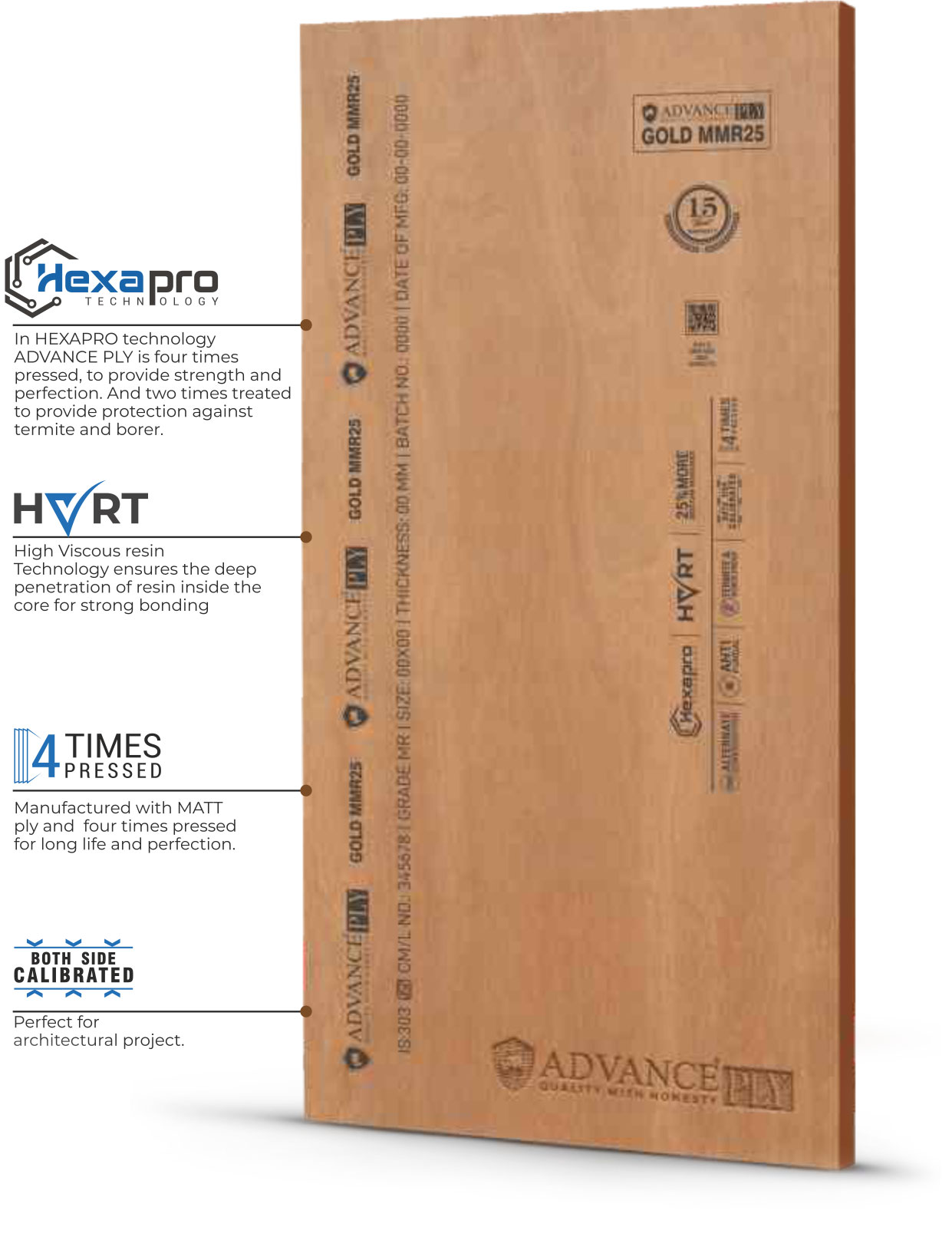

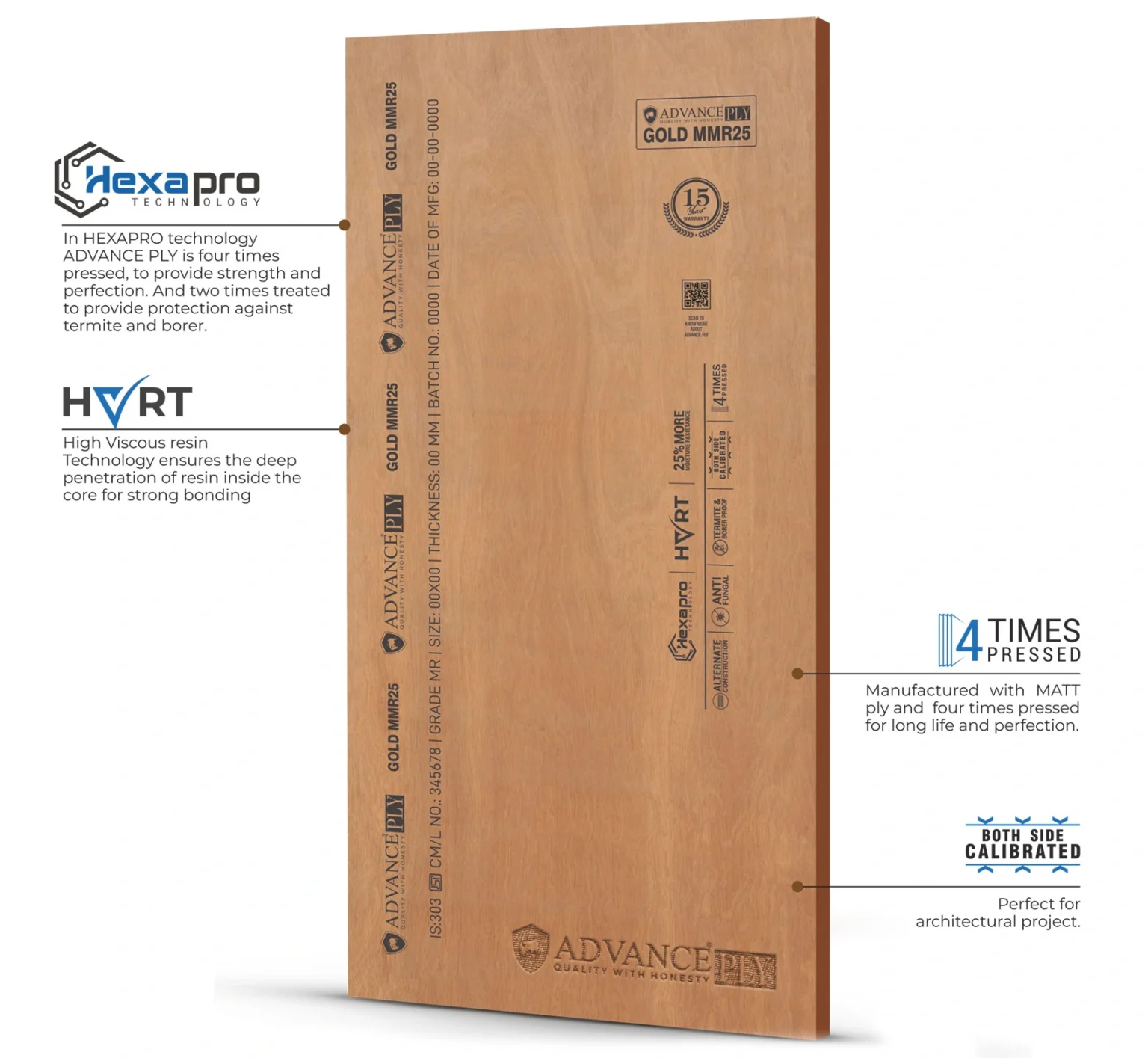

Each sheet is manufactured using HEXAPRO Technology with 4x pressing, both-side calibration and glue line protection against borer, termite and fungi attack. The result is uniform bonding, consistent strength and improved service life for residential and commercial interior furniture.
Why Advance Ply Gold MMR25 Performs Differently?
25%
More Moisture Resistance
Made with MMR-25 resin technology to provide 25% more moisture resistance than ordinary MR plywood for changing indoor humidity conditions.
8 Cycle
@ 65°C Resistance
Extra water resistance tested through 8 cycles at 65°C, helping the plywood withstand humidity and temperature fluctuations.
HVRT
Resin Technology
High Viscosity Resin Technology ensures deep resin penetration into the core for stronger bonding between layers.
GLP
Glue Line Protection
All glue lines are treated with anti-borer, termite and fungi chemicals to help prevent powder formation, decay and furniture damage.
4x
Hydraulic Pressing
Manufactured using HEXAPRO Technology and 4x pressing for improved bond strength, uniform density and long-term panel stability.
Both Side
Calibrated Finish
Both-side calibration provides uniform thickness, smooth surface finish and better laminate or veneer application accuracy.
Recommended Applications for Advance Ply Gold MMR25
Bedroom Wardrobes
Suitable for wardrobe carcasses, shutters and internal storage systems exposed to normal seasonal humidity.
Living Room Furniture
Recommended for TV units, display cabinets, wall units and storage furniture requiring better MR performance.
Office Furniture
Useful for workstations, file cabinets, partitions and office storage units in indoor commercial spaces.
Cabinetry & Shelving
Works well for shelves, cabinet partitions and furniture panels where uniform bonding and strength are important.
Interior Partitions
Suitable for dry indoor partitions and panelling where dimensional stability is required.
Rainfall-Prone Regions
Useful for interiors in areas with high rainfall and humidity fluctuations, provided the application is not under direct water exposure.
Advance Ply Gold MMR25 - Technical Specifications
Specification | Value |
|---|---|
Physical Properties | |
| Plywood Type | MR Grade Plywood |
| IS Standard | IS 303 |
| Base Material | Alternate |
| Face Material | Tropical Hardwood Species |
| Core / Resin Positioning | Melamine fortified modified UF Resin MMR-25 |
| Density | Avg. 0.65 g/cm³ |
| Thickness Range | 6mm to 18mm |
| Standard Sheet Sizes | 8x4 ft, 7x4 ft, 6x4 ft, 8x3 ft, 7x3 ft, 6x3 ft |
| Calibrated | Yes |
| Moisture Content | 5%–15% (Oven Dry Method) |
Chemical Properties | |
| Resin Type | Melamine fortified modified UF Resin |
| Glue / Adhesion | Bonded with urea formaldehyde resin fortified with melamine which provides more moisture resistance |
| GLP - Glue Line Protection | Glue line protection to resist termite, borer and fungus attack |
Mechanical Properties | |
| Screw Holding Capacity | More Than 1300 N |
| Modulus of Elasticity | Along grain: Avg 4226 N/mm², Min 3928 N/mm² | Across grain: Avg 2562 N/mm², Min 2489 N/mm² |
| Modulus of Rupture | Along grain: Avg 35 N/mm², Min 28 N/mm² | Across grain: Avg 22 N/mm², Min 20 N/mm² |
| Glue Shear Strength (Dry State) | Avg 1296 N/mm², Min 1144 N/mm² |
| Glue Shear Strength (Wet State) | Avg 956 N/mm², Min 844 N/mm² |
Fire and Water Resistance | |
| Moisture Resistance | Resistance to water in humid environment more than 5 cycle |
| Extra Water Proof | 8 cycle @ 65°C |
| Recommended Usage Environment | Interior furniture applications exposed to humidity variation, not direct water exposure |
Manufacturing | |
| Manufacturing Technology | HVRT Technology + HEXAPRO Process |
| Press Cycles | 4x Hydraulic Pressing |
| Calibration | Both-side calibrated |
| Panel Treatment | Glue line treated with anti-borer, termite and fungi chemicals |
Warranty | |
| Warranty | 15 Year Manufacturer Warranty |
Advance Ply Gold MMR25 vs Other Advance Ply Plywood Range
| Feature | Gold MMR25 (this) | Gold MMR25 Plus | MMR10 |
|---|---|---|---|
| IS standard | IS 303:2024 | IS 303:2024 | IS 303:2024 |
| Grade type | MR Grade, MMR-25 | MR Grade, MMR-25 Plus | MR Grade, MMR-10 |
| Moisture Resistance | 25% more moisture resistance, 8 cycle @ 65°C | 25% more moisture resistance with stronger positioning | 10% more moisture resistance, 5 cycle @ 65°C |
| Resin type | Melamine fortified modified UF Resin | Melamine fortified modified UF Resin | Modified UF Resin |
| Density | 0.65 g/cm³ | 0.70 g/cm³ | 0.65 g/cm³ |
| Warranty | 15 Year | 25 Year | 10 Year |
| Best for | Wardrobes, cabinets and interiors in humidity-prone regions | Higher durability furniture and premium interiors | Standard indoor furniture and dry interiors |
Frequently Asked Questions About Advance Ply Gold MMR25
What is Advance Ply Gold MMR25 best used for?
Advance Ply Gold MMR25 is best used for wardrobes, cabinets, TV units, shelves, partitions and interior furniture where seasonal humidity and temperature changes may affect ordinary MR plywood.
What makes Gold MMR25 different from ordinary MR plywood?
Gold MMR25 uses melamine fortified modified UF Resin MMR-25 with HVRT Technology. It offers 25% more moisture resistance and is tested for 8 cycles at 65°C.
Is Advance Ply Gold MMR25 waterproof plywood?
Gold MMR25 is an IS 303 MR Grade plywood designed for improved moisture resistance in humid indoor environments. For direct water contact, choose a BWP or Marine Grade product.
What thickness is recommended for wardrobes using Gold MMR25?
18mm is the preferred thickness for wardrobe carcasses and shutters. 12mm can be used for shelves and partitions, while 6mm is suitable for back panels.
Is Advance Ply Gold MMR25 termite and borer resistant?
Yes. Gold MMR25 includes glue line protection to resist termite, borer and fungus attack, helping reduce powder formation, decay and furniture damage.
Advance Ply Gold MMR25 - IS 303 MR Grade Plywood
IS 303 | HVRT Resin | 25% More Moisture Resistance | 15 Year Warranty
