Advance Ply
MMR10
- Home
- All Plywood Range
- Advance Ply MMR10
- 10 Year Warranty
- IS 303 MR Grade
- HVRT Resin
- 5 Cycles @65°C
- Both Side Calibrated
- Glue Line Protection
Thickness Selector
Cabinet backs, drawer bottoms and lightweight decorative backing panels
Partition panels, furniture backing, wall cladding and secondary interior panels
Internal shelves, cabinet partitions and light-duty furniture components
Wardrobe shutters, doors and medium-duty furniture applications
Wardrobe carcasses, TV units, cabinets, beds and standard furniture construction
Sheet Sizes: Standard 8×4 ft | Also available: 7×4 ft, 6×4 ft, 8×3 ft, 7×3 ft, 6×3 ft
- MR Grade
- IS 303:2024
- HVRT Resin
- 5 Cycles @65°C
- 4x Hydraulic Pressing
- Both Side Calibrated

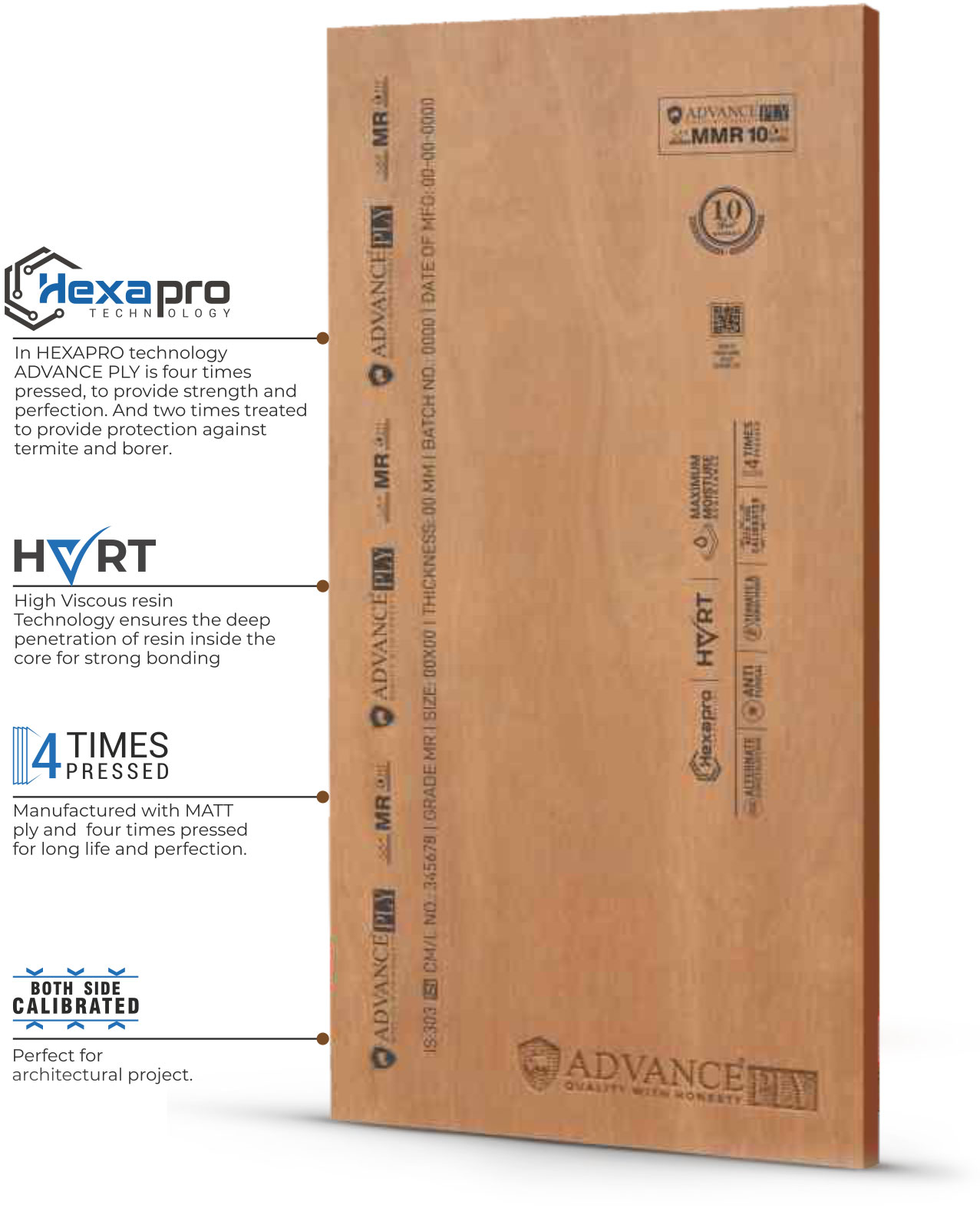

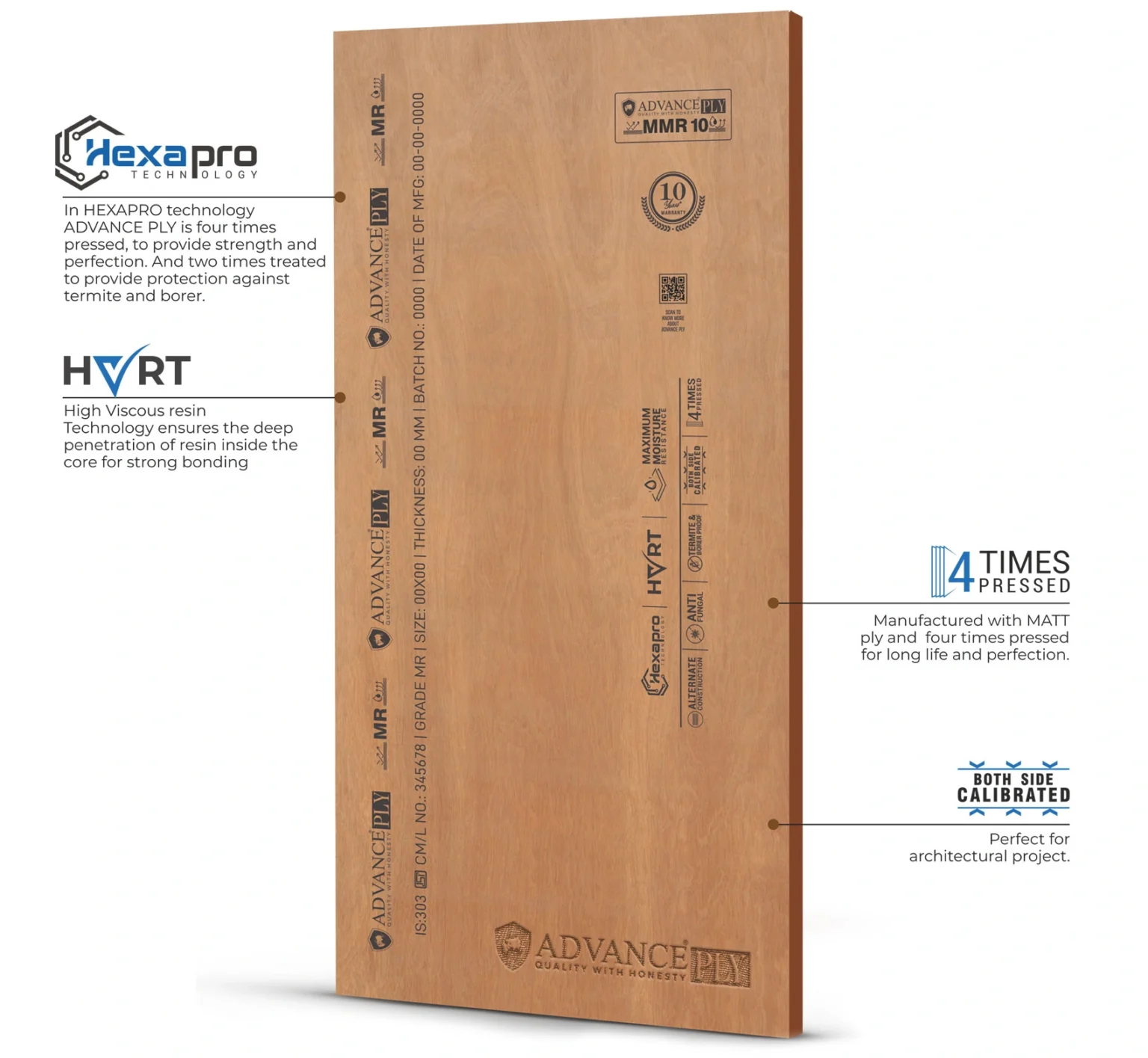

Advance Ply MMR10 is IS 303 certified MR grade plywood made with HVRT resin and engineered for interior furniture applications where normal moisture and seasonal humidity may occur. It is both-side calibrated for uniform thickness, smoother finishing and better fitting accuracy in furniture work.
MMR10 is suitable for wardrobes, bedroom furniture, TV units, shelves, partitions, office furniture and dry interior applications where moisture resistance is required but direct water exposure is not expected. Its 5-cycle moisture resistance at 65°C helps improve service life compared with ordinary MR plywood.
Each MMR10 sheet is manufactured using the HEXAPRO process with 4x hydraulic pressing for consistent bonding and panel stability. Glue Line Protection helps resist termite, borer and fungus attack, while the melamine fortified modified UF resin system supports dependable strength in everyday furniture applications.
Why Advance Ply MMR10 Performs Differently?
IS 303
MR Grade
IS 303 certified MR grade plywood designed for interior furniture applications where normal moisture and seasonal humidity may occur.
MMR-10
Resin System
Melamine fortified modified UF resin MMR-10 improves bonding strength and helps the panel resist moisture in everyday indoor conditions.
5 Cycles
Moisture Resistance
Extra water resistance tested for 5 cycles at 65°C helps the plywood perform better than ordinary MR plywood.
HVRT
Resin Technology
High Viscosity Resin Technology supports deeper resin penetration, helping create uniform bonding and strength between layers.
GLP
Glue Line Protection
All glue lines are treated with anti-borer, termite and fungi chemicals to help protect furniture from biological attack.
4x
Hydraulic Pressing
Manufactured using the HEXAPRO process with 4x hydraulic pressing for improved density, panel stability and long service life.
Recommended Applications for Advance Ply MMR10
Bedroom Wardrobes
Suitable for wardrobe carcasses, shutters and internal sections in bedrooms with normal indoor humidity.
TV Units
Recommended for TV units, entertainment cabinets and wall-mounted storage systems used in dry interior spaces.
Beds and Side Tables
Useful for bed boxes, side tables, dressing units and everyday residential furniture requiring stable panels.
Office Furniture
Suitable for workstations, storage cabinets, shelves and office interiors exposed to normal indoor conditions.
Partitions and Panels
Works well for internal partitions, decorative panels and dry wall cladding where moisture exposure is limited.
Display Units
Used for showroom display units, bookshelves and retail storage furniture requiring smooth finishing and reliable bonding.
Advance Ply MMR10 - Technical Specifications
Specification | Value |
|---|---|
Physical Properties | |
| Plywood Type | MR Grade Moisture Resistant Plywood |
| IS Standard | IS 303:2024 |
| Base Material | Alternate |
| Face Material | Tropical Hardwood Species |
| Glue / Adhesion | Bonded with urea formaldehyde resin fortified with melamine which provides more moisture resistance |
| Calibrated | Yes |
| Density | Avg. 0.65 g/cm³ |
| Thickness Range | 6mm to 18mm |
| Standard Sheet Sizes | 8x4 ft, 7x4 ft, 6x4 ft, 8x3 ft, 7x3 ft, 6x3 ft |
| Moisture Content | 5%–15% (Oven Dry Method) |
| Moisture Resistance | Resistance to water in humid environment more than 3 cycle |
Chemical Properties | |
| Resin Type | Melamine fortified modified UF Resin MMR-10 |
| Glue Line Protection (GLP) | Glue line protection to resist termite, borer and fungus attack |
Mechanical Properties | |
| Screw Holding Capacity | More Than 1300 N |
| Modulus of Elasticity | Along grain: Avg. 4226 N/mm², Min. 3928 N/mm² | Across grain: Avg. 2562 N/mm², Min. 2489 N/mm² |
| Modulus of Rupture | Along grain: Avg. 35 N/mm², Min. 28 N/mm² | Across grain: Avg. 22 N/mm², Min. 20 N/mm² |
| Glue Shear Strength (Dry State) | Avg. 1296 N/mm², Min. 1144 N/mm² |
| Glue Shear Strength (Wet State) | Avg. 956 N/mm², Min. 844 N/mm² |
Fire and Water Resistance | |
| Boiling Water Proof | Extra water proof, 5 cycles at 65°C |
| Recommended Use Environment | Indoor furniture and dry interiors with normal humidity fluctuations |
Manufacturing | |
| Manufacturing Technology | HVRT Technology + HEXAPRO Process |
| Press Cycles | 4x Hydraulic Pressing |
| Calibration | Both Side Calibrated |
Warranty | |
| Warranty | 10 Year Manufacturer Warranty |
Advance Ply MMR10 vs Other Advance Ply Plywood Range
| Feature | MMR10 (This) | Gold MMR25 | Gold |
|---|---|---|---|
| IS Standard | IS 303:2024 | IS 303:2024 | IS 303:2024 |
| Grade Type | MR Grade | MR Grade with MMR-25 moisture resistance | BWP Grade |
| Moisture Resistance | 5 cycles at 65°C | 8 cycles at 65°C | More than 200 hrs boiling water proof |
| Resin System | Melamine fortified modified UF Resin MMR-10 | Melamine fortified modified UF Resin MMR-25 | E1 MPF BWP Grade Resin |
| Density | 0.65 g/cm³ | 0.65 g/cm³ | 0.78 g/cm³ |
| Warranty | 10 Years | 15 Years | 30 Years |
| Best for | Wardrobes, TV units and normal indoor furniture | Furniture in higher humidity interiors | BWP interiors, cabinets and higher moisture applications |
Frequently Asked Questions About Advance Ply MMR10
What is Advance Ply MMR10 best used for?
Advance Ply MMR10 is best used for wardrobes, TV units, beds, shelves, office furniture, partitions and other dry interior applications where normal moisture and humidity fluctuations may occur.
What does MMR10 mean in Advance Ply MMR10?
MMR10 refers to melamine fortified modified UF resin with extra moisture resistance. The plywood is designed to resist moisture better than ordinary MR plywood in indoor conditions.
Is Advance Ply MMR10 suitable for kitchen or bathroom use?
Advance Ply MMR10 is suitable for normal indoor furniture and dry interiors. For kitchens, bathrooms or areas with regular water exposure, a higher BWR or marine grade product should be selected.
What thickness is recommended for wardrobes using MMR10?
18mm is generally preferred for wardrobe carcasses and main furniture construction. 12mm can be used for internal shelves, while 6mm is suitable for back panels and drawer bottoms.
Is Advance Ply MMR10 termite and borer resistant?
Yes. Advance Ply MMR10 includes Glue Line Protection to resist termite, borer and fungus attack, helping improve durability in interior furniture applications.
Advance Ply MMR10 - MR Grade Plywood
IS 303 | Moisture Resistant Plywood | HVRT Resin | 10 Year Warranty
