Advance Ply 710
- Home
- All Plywood Range
- Advance Ply 710
- 15 Year Warranty
- IS 303 BWR Grade
- 0.65 g/cm³ Density
- >1300N Screw Holding
- 72 Hrs @ 100°C
- Semi-Exterior Use
What Is Advance Ply 710?
Advance Ply 710 is BWR grade plywood made to IS 303, the general plywood standard. The 710 in the name is a product name, not the Indian Standard number: IS 710 is the separate marine standard, and this board is not certified to it. It is bonded with melamine fortified urea formaldehyde, carries glue line protection against termites, borers and fungus, and holds a screw at over 1300 N. Specify it for wardrobes, beds and general interior furniture, and step up to a BWP or marine board wherever water stands.
Thickness Selector
Back panels, drawer bottoms, light cladding and secondary panels
Partition panels, wall cladding and lightweight furniture components
Internal shelves, cabinet partitions and secondary furniture panels
Doors, shutters and semi-exterior furniture panels
Heavy-duty furniture, wall panels and semi-exterior structural applications
Sheet Sizes: 8×4 ft | 7×4 ft | 6×4 ft | 8×3 ft | 7×3 ft | 6×3 ft
- BWR Grade
- IS 303:2024
- HVRT Resin
- 4x Pressed
- 72 Hrs @ 100°C
- Both Side Calibrated
Advance Ply 710 is IS 303 certified Boiling Water Resistant (BWR) grade plywood manufactured for semi-exterior furniture and interior areas exposed to humidity, temperature changes and occasional moisture. It is bonded with urea formaldehyde resin fortified with melamine, which improves moisture resistance and bonding stability.
Advance Ply 710 is suitable for modular kitchens, utility furniture, covered balconies, semi-exterior panels, wardrobes near damp walls and furniture used in humid regions. Its BWR grade performance helps the plywood resist boiling water exposure better than standard MR grade plywood while maintaining uniform strength across the panel.

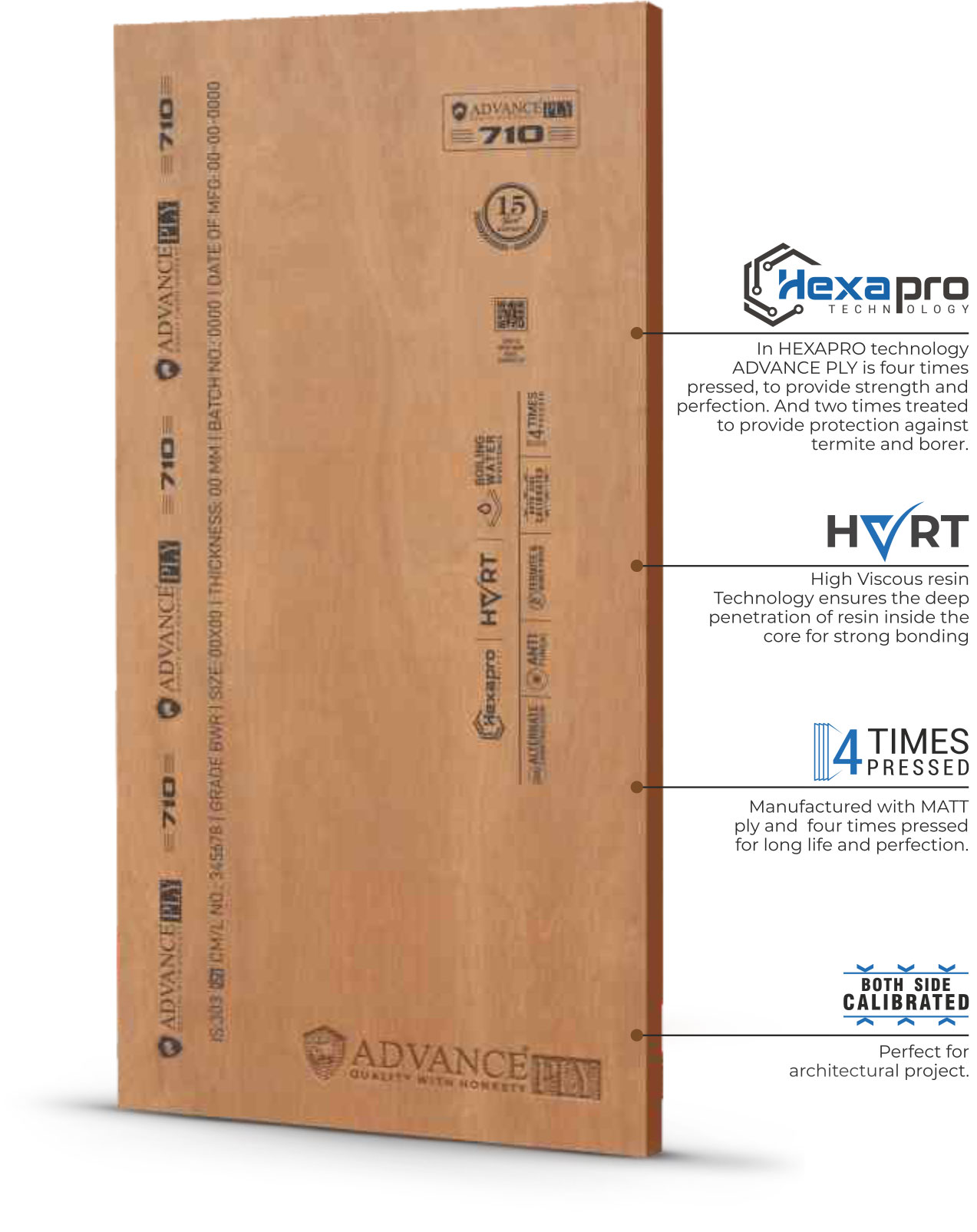

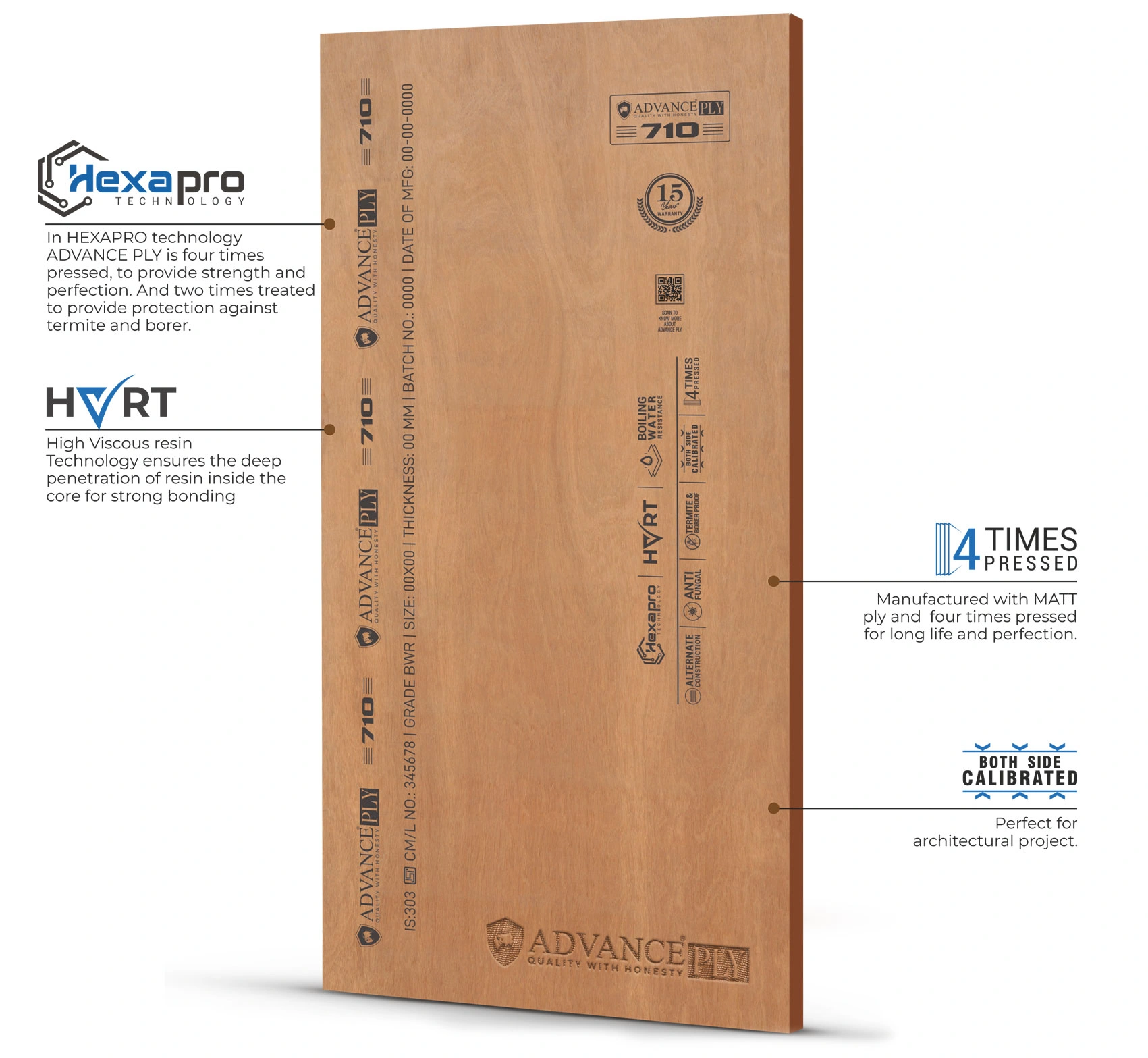

Each sheet is manufactured using HVRT Technology and the HEXAPRO process with 4x hydraulic pressing for consistent bonding and density. Glue line protection helps resist termite, borer and fungus attack, while both-side calibration provides a smooth and uniform surface for accurate finishing and laminate application.
Why Advance Ply 710 Performs Differently?
IS 303
BWR Grade
IS 303 certified BWR grade plywood designed for boiling water resistance and improved performance in humid interior and semi-exterior applications.
72 Hrs
Water Resistance
Engineered to withstand extra water resistance up to 72 hours at 100°C, helping panels perform better under moisture and humidity exposure.
HVRT
Resin Technology
High Viscosity Resin Technology ensures deep penetration of resin inside the core, creating stronger bonding between veneer layers.
4x
Hydraulic Pressing
Manufactured using HEXAPRO process and 4x hydraulic pressing for improved density, bonding strength and long-term panel stability.
0.65
g/cm³ Density
Average density of 0.65 g/cm³ supports reliable strength, workability and performance for semi-exterior plywood applications.
GLP
Glue Line Protection
Glue line protection helps resist termite, borer and fungus attack while improving the service life of the plywood.
Advance Ply 710 - Technical Specifications
Specification | Value |
|---|---|
Physical Properties | |
| Plywood Type | BWR Grade Plywood |
| IS Standard | IS 303 |
| Base Material | Alternate Construction |
| Face Material | Tropical Hardwood Species |
| Density | Avg. 0.65 g/cm³ |
| Thickness Range | 6mm to 19mm |
| Standard Sheet Sizes | 8x4 ft, 7x4 ft, 6x4 ft, 8x3 ft, 7x3 ft, 6x3 ft |
| Calibrated | Yes |
| Moisture Content | 5% to 15% by oven dry method |
Chemical Properties | |
| Glue / Adhesion | Bonded with urea formaldehyde resin fortified with melamine, which provides more moisture resistance |
| GLP - Glue Line Protection | Glue line protection to resist termite, borer and fungus attack |
Mechanical Properties | |
| Screw Holding Capacity | More than 1300 N |
| Modulus of Elasticity | Along grain: Avg 5235 N/mm², Min 5046 N/mm² | Across grain: Avg 2814 N/mm², Min 2677 N/mm² |
| Modulus of Rupture | Along grain: Avg 40 N/mm², Min 38 N/mm² | Across grain: Avg 27 N/mm², Min 24 N/mm² |
| Glue Shear Strength (Dry State) | Avg 1320 N, Min 1189 N |
| Glue Shear Strength (Wet State) | Avg 988 N, Min 897 N |
Fire and Water Resistance | |
| Moisture Resistance | Resistance to boiling water |
| Extra Water Resistance | Up to 72 hours at 100°C |
| Recommended Usage Environment | Semi-exterior applications and humid interior conditions |
Manufacturing | |
| Manufacturing Technology | HVRT Technology + HEXAPRO Process |
| Press Cycles | 4x Hydraulic Pressing |
| Surface Finish | Both-side calibrated for accurate finishing and laminate application |
Warranty | |
| Warranty | 15 Year Manufacturer Warranty |
Advance Ply 710 vs Other Advance Ply Plywood Range
| Feature | 710 (This) | Gold | Gold Marine |
|---|---|---|---|
| IS standard | IS 303 | IS 303 | IS 710:2024 |
| Grade type | BWR Grade | BWP Grade | BWP Marine Grade |
| Resin / Bonding | UF resin fortified with melamine | E1 MPF BWP Grade Resin | E1 Grade Resin |
| Density | 0.65 g/cm³ | 0.75 g/cm³ | 0.75 g/cm³ |
| Warranty | 15 Year | 30 Year | 35 Year |
| Best for | Semi-exterior furniture, utility areas and humid interiors | Premium wardrobes, cabinets and interior furniture | Marine, coastal and high-moisture applications |
Frequently Asked Questions About Advance Ply 710
What is Advance Ply 710 used for?
Advance Ply 710 is used for semi-exterior furniture, modular kitchen cabinets, utility storage, covered balcony panels, wardrobes near damp walls and furniture used in humid regions. Its IS 303 BWR grade performance makes it suitable for applications where occasional moisture or humidity exposure is expected.
What is the difference between Advance Ply 710 and Advance Ply Gold?
Advance Ply 710 is an IS 303 BWR grade board built for semi-exterior use, tested at 72 hours in boiling water at 100°C and backed by a 15 year warranty. Advance Ply Gold is the higher specification board in the range, with greater density and a longer warranty. Check the Indian Standard number and grade printed on the edge of each board before you specify, because that marking is what the specification actually rests on.
Is Advance Ply 710 suitable for kitchens?
Yes. Advance Ply 710 can be used in modular kitchens and utility furniture where occasional moisture, humidity and heat exposure are expected. For heavy water exposure, coastal locations or premium marine-grade applications, Advance Ply Gold Marine or Tungsten may be more suitable.
What thickness is recommended for furniture made with Advance Ply 710?
18mm is the preferred thickness for kitchen cabinets, wardrobes and furniture carcasses. 12mm is commonly used for shelves and partitions, while 6mm is suitable for back panels, drawer bottoms and light cladding work.
Does Advance Ply 710 resist termites and borers?
Yes. Advance Ply 710 uses GLP glue line protection to resist termite, borer and fungus attack. This helps improve the durability and service life of the plywood in humid and semi-exterior conditions.
Is Advance Ply 710 the same as IS 710 marine plywood?
No. The 710 in Advance Ply 710 is a product name, not an Indian Standard number. This board conforms to IS 303, the general plywood standard, in BWR grade. IS 710 is the separate standard for marine plywood, with its own licence and a mandatory preservative treatment. If the job needs an IS 710 board, specify from the marine range instead.
What does 710 mean in plywood?
In the Indian market 710 is used in two different ways, and that is where the confusion starts. IS 710 is the Bureau of Indian Standards code for marine plywood. Separately, several manufacturers use 710 inside a product name for a water resistant board. The only reliable check is the Indian Standard number and grade printed on the edge of the sheet, not the name on the shrink wrap.
Which Indian Standard does Advance Ply 710 conform to, and how do I verify it?
It conforms to IS 303, the general plywood standard, in BWR grade. Read the edge marking on the sheet. It should show the manufacturer, the IS number with its edition year, the grade, a BIS Standard Mark with a licence number in the CM/L plus ten digit format, a batch identification and the year of manufacture. Verify that licence number in the BIS Care app before the sheet is cut.
Is Advance Ply 710 waterproof?
No plywood is waterproof, and waterproof is not a term the Indian Standards use. Advance Ply 710 is BWR grade under IS 303, which means it is tested for 72 hours in boiling water at 100°C and is built to handle humidity, spills and occasional damp. For standing water, bathrooms or coastal homes, specify a marine board under IS 710.
What glue is used in Advance Ply 710?
It is bonded with urea formaldehyde resin fortified with melamine, which the brand markets as HVRT resin. The melamine fortification is what lifts the board from MR to BWR performance under IS 303. The panel is also given 4x hydraulic pressing and carries GLP glue line protection against termites, borers and fungus.
Can I use Advance Ply 710 in a bathroom?
No. A bathroom vanity sits in standing humidity for years, and that calls for a marine board under IS 710 with its mandatory preservative treatment, such as Advance Gold Marine. Advance Ply 710 is BWR grade under IS 303 and belongs in wardrobes, beds, study units, modular kitchen carcasses and utility storage where moisture is occasional rather than constant.
Advance Ply 710 - BWR Grade Plywood
IS 303 BWR Grade | HVRT Resin | 72 Hrs @ 100°C | 15 Year Warranty
