Advance Ply
MMR10 Plus
- Home
- All Plywood Range
- Advance Ply MMR10 Plus
- 15 Year Warranty
- Hardwood Construction
- 0.70 g/cm³ Density
- 10% More Moisture Resistance
- IS 303 MR Grade
- Both Side Calibrated
Thickness Selector
Back panels, drawer bottoms and lightweight interior panels
Thin partition panels, decorative cladding and cabinet backs
Internal shelves, secondary panels and storage furniture components
Wardrobe shutters, cabinet partitions and lightweight furniture panels
Wardrobe carcasses, TV units, cabinets and standard interior furniture
Sheet sizes – Standard: 8×4 ft. | Also available: 7×4, 6×4, 8×3, 7×3, 6×3 ft.
- MR Grade Plywood
- IS 303 Certified
- HVRT Resin
- 10% More Moisture Resistance
- 4x Pressed
- Both Side Calibrated
Advance Ply MMR10 Plus is IS 303 MR Grade plywood manufactured for interior applications where regular humidity and moderate moisture exposure are expected. It is bonded with melamine fortified modified UF resin and HVRT resin technology to support stronger bonding and improved moisture resistance in everyday furniture use.
MMR10 Plus is suitable for wardrobes, TV units, living room furniture, bedroom cabinets, partitions, shelves and office furniture placed in normal indoor environments. Its 10% more moisture resistance and 5-cycle performance at 65°C make it a stronger option than ordinary MR plywood for interiors exposed to changing humidity.

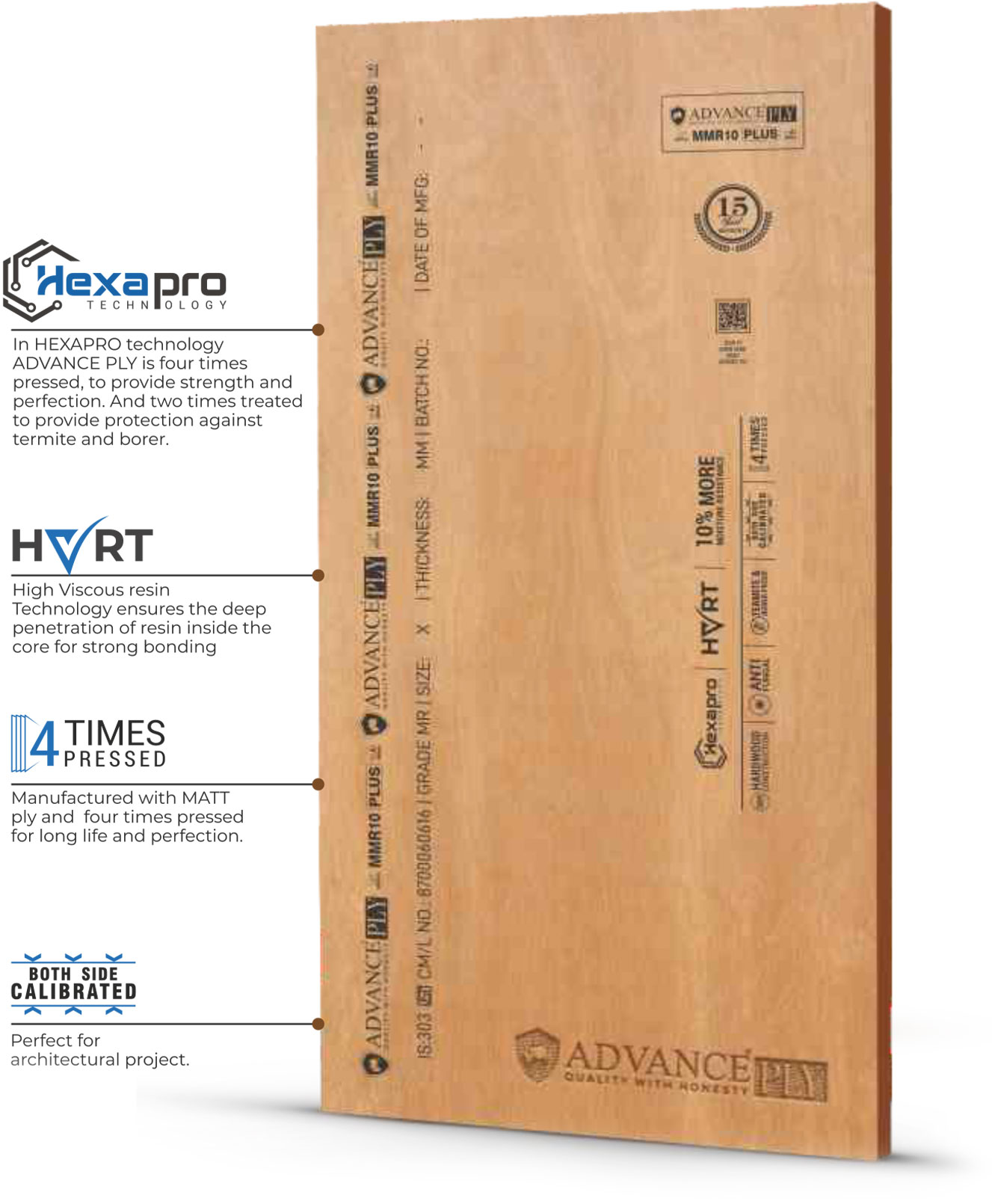

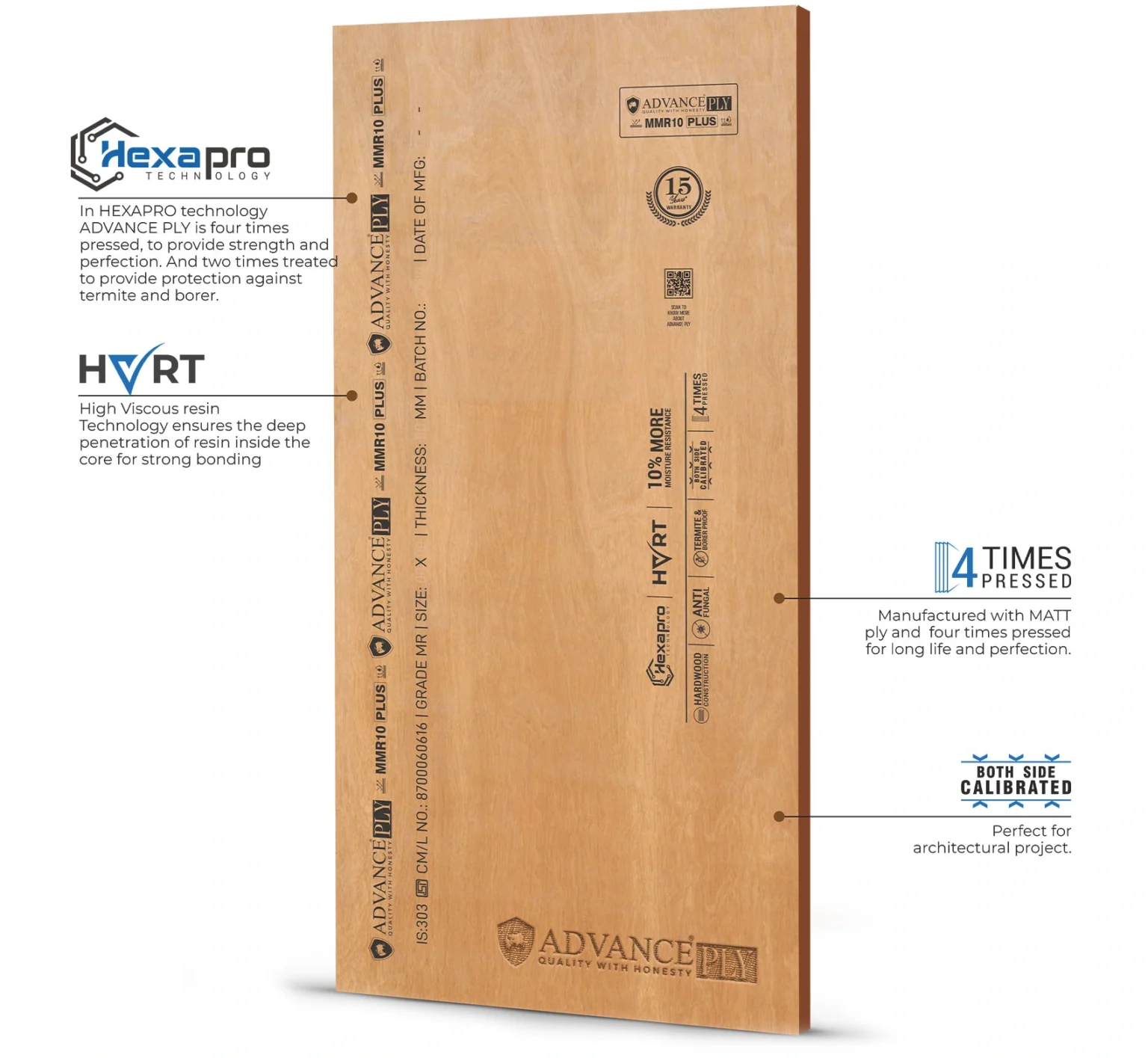

Each sheet is manufactured using HEXAPRO technology with four-time pressing and both-side calibration for better surface finish, uniform bonding and stable panel performance. Glue line protection helps resist termite, borer and fungus attack, while hardwood construction improves durability for long-term furniture applications.
Why Advance Ply MMR10 Plus Performs Differently?
IS 303
MR Grade
IS 303 MR Grade plywood designed for interior furniture and moisture resistant applications. Suitable for spaces with normal indoor humidity and moderate moisture exposure.
10%
More Moisture Resistance
MMR10 Plus provides 10% more moisture resistance than ordinary MR plywood. It helps furniture perform better in changing ambient humidity and temperature.
5 Cycles
@65°C Resistance
Extra water resistance tested for 5 cycles at 65°C. This supports improved durability for wardrobes, cabinets and interior furniture applications.
HVRT
Resin Technology
High Viscosity Resin Technology supports deeper resin penetration inside the core. This helps create stronger bonding between veneer layers.
4x
Hydraulic Pressing
Manufactured using HEXAPRO technology with four-time pressing for consistent bonding, better strength and long-lasting panel performance.
GLP
Glue Line Protection
Glue line protection helps resist termite, borer and fungus attack, improving reliability in everyday residential and commercial interiors.
Recommended Applications for Advance Ply MMR10 Plus
Wardrobes
Recommended for bedroom wardrobes and storage units where moisture resistance and long-term panel stability are required.
TV Units
Suitable for living room TV units, media cabinets and decorative storage furniture in normal indoor environments.
Bedroom Furniture
Used for beds, side tables, dressers and bedroom cabinets exposed to regular room humidity.
Office Furniture
Works well for workstations, shelves, filing cabinets and office storage systems requiring reliable bonding.
Interior Partitions
Suitable for interior partitions and panel-based furniture in dry to moderately humid conditions.
Shelving Units
Useful for internal shelves, utility storage and display units that need stable MR grade plywood.
Advance Ply MMR10 Plus - Technical Specifications
Specification | Value |
|---|---|
Physical Properties | |
| Plywood Type | MR Grade Plywood |
| IS Standard | IS 303 |
| Base Material | Hardwood |
| Face Material | Tropical Hardwood Species |
| Core Construction | Hardwood Construction |
| Calibrated | Yes, Both Side Calibrated |
| Density | Avg. 0.70 g/cm³ |
| Thickness Range | 6mm to 18mm |
| Standard Sheet Sizes | 8x4 ft, 7x4 ft, 6x4 ft, 8x3 ft, 7x3 ft, 6x3 ft |
| Moisture Content | 5%–15% (Oven Dry Method) |
Chemical Properties | |
| Resin / Glue Adhesion | Urea formaldehyde resin fortified with melamine for more moisture resistance |
| HVRT Resin | Bonded with HVRT resin technology for deep penetration and strong bonding |
| GLP - Glue Line Protection | Glue line protection to resist termite, borer and fungus attack |
| Moisture Resistance | Resistance to water in humid environment more than 3 cycles |
Mechanical Properties | |
| Screw Holding Capacity | More Than 1350 N |
| Modulus of Elasticity | Along grain: Avg 4375 N/mm², Min 4067 N/mm² | Across grain: Avg 2789 N/mm², Min 2648 N/mm² |
| Modulus of Rupture | Along grain: Avg 40 N/mm², Min 35 N/mm² | Across grain: Avg 25 N/mm², Min 22 N/mm² |
| Glue Shear Strength (Dry State) | Avg 1374 N/mm², Min 1155 N/mm² |
| Glue Shear Strength (Wet State) | Avg 1050 N/mm², Min 945 N/mm² |
Fire and Water Resistance | |
| Recommended Environment | Interior use in rooms with normal to moderate humidity |
Manufacturing | |
| Manufacturing Technology | HVRT Technology + HEXAPRO Process |
| Press Cycles | 4x Hydraulic Pressing |
| Calibration | Both Side Calibrated for smooth finish and accurate thickness |
Warranty | |
| Warranty | 15 Year Manufacturer Warranty |
Advance Ply MMR10 Plus vs Other Advance Ply Plywood Range
| Feature | MMR10 Plus (This) | MMR10 | Gold MMR25 Plus |
|---|---|---|---|
| IS standard | IS 303 | IS 303 | IS 303 |
| Grade Type | MR Grade, 10% More Moisture Resistance | MR Grade, MMR-10 | MR Grade, 25% More Moisture Resistance |
| Resin / Bonding | Melamine fortified modified UF resin + HVRT resin | Melamine fortified modified UF resin + HVRT resin | Melamine fortified modified UF resin + HVRT resin |
| Moisture Resistance | More than 3 cycles; 10% more moisture resistance | More than 3 cycles; MMR-10 | More than 5 cycles; 25% more moisture resistance |
| Density | 0.70 g/cm³ | 0.65 g/cm³ | 0.70 g/cm³ |
| Warranty | 15 Years | 10 Years | 25 Years |
| Best for | Wardrobes, TV units, cabinets and improved MR interior furniture | Budget interior furniture and wardrobes | Premium wardrobes, larger storage and high-humidity interiors |
Frequently Asked Questions About Advance Ply MMR10 Plus
What is Advance Ply MMR10 Plus used for?
Advance Ply MMR10 Plus is used for wardrobes, TV units, bedroom furniture, office furniture, shelves and interior cabinets where better moisture resistance than ordinary MR plywood is required.
What makes MMR10 Plus different from ordinary MR plywood?
MMR10 Plus is made with melamine fortified modified UF resin and HVRT resin technology. It offers 10% more moisture resistance and is designed to withstand changing humidity in interior applications.
What is the moisture resistance of Advance Ply MMR10 Plus?
Advance Ply MMR10 Plus provides resistance to water in humid environments for more than 3 cycles and offers extra water resistance of 5 cycles at 65°C.
Is Advance Ply MMR10 Plus termite and borer resistant?
Yes. It includes glue line protection that helps resist termite, borer and fungus attack, supporting longer service life in residential and commercial interiors.
What thickness is recommended for wardrobes using MMR10 Plus?
18mm is recommended for wardrobe carcasses and shutters. 12mm can be used for shelves and internal partitions, while 6mm is suitable for back panels and drawer bottoms.
Advance Ply MMR10 Plus - MR Grade Plywood
IS 303 | HVRT Resin | 10% More Moisture Resistance | 15 Year Warranty
