Advance Ply
Flexi
- Home
- All Plywood Range
- Advance Ply Flexi
- Flexible Grade Plywood
- 5–11mm Thickness Range
- UF Resin Bonded
- Class E2 Emission Standard
- Termite & Borer Resistant
- Excellent Bending Without Cracking
Available in
Tight-radius decorative curves, curved bed backs, TV unit designs
Decorative wall panels, wardrobe curved shutters, retail display curves
Living room arches, false wall curves, reception desk applications
Suitable for curved furniture, decorative interiors and non-leakage ceiling designs
Standard: 8×4 ft.
- Flexible Grade
- Curved Furniture
- False Ceiling
- Decorative Wall Panels
- Moisture Resistant

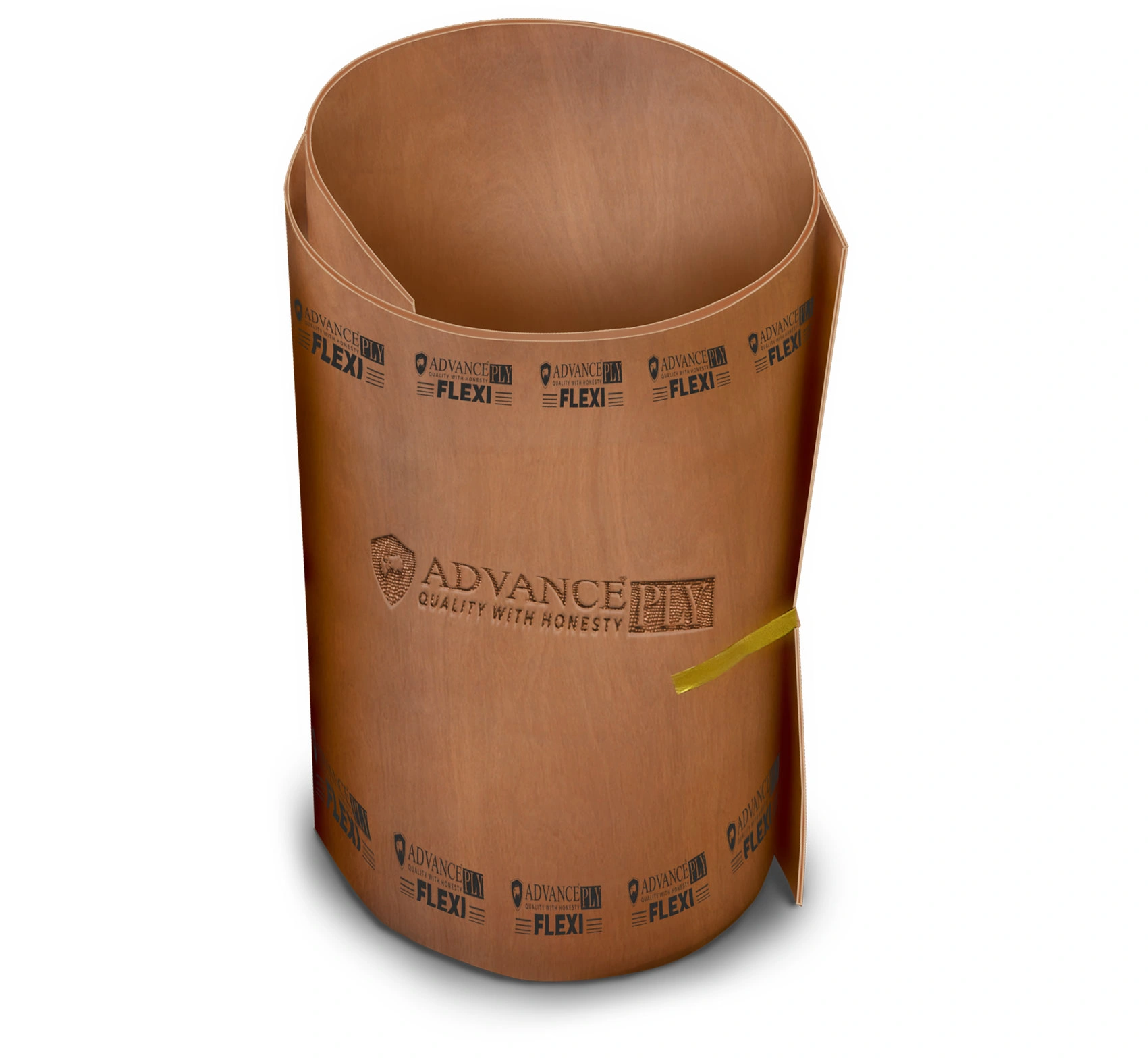

Advance Ply Flexi is specially engineered flexible plywood manufactured using selected thin veneers bonded with Urea Formaldehyde (UF) resin. Its unique grain orientation and construction allow the board to bend into curved shapes without cracking or splitting, making it suitable for interior applications that require smooth curved surfaces.
Advance Ply Flexi is designed for curved furniture profiles, decorative wall panels, curved TV unit designs, wardrobe shutters, living room arches, false wall curves, reception desks, retail display installations, and ceiling design applications. It offers reliable bonding strength while maintaining the flexibility required for curved construction.
Available in thicknesses from 5mm to 11mm, Flexi is moisture resistant and suitable for indoor environments with normal humidity. Multiple sheets can be laminated together to build greater thickness for more demanding curved interior applications while maintaining dimensional stability and workability.
Why Advance Ply Flexi Performs Differently?
Bends
Without Cracking
Special veneer orientation allows the sheet to bend smoothly along its length without cracking or splitting. Ideal for curved interior designs.
BWP | BWR | MR
Grade Options
Available in BWP, BWR and MR grades to suit different interior requirements while retaining flexibility for curved applications.
5-11mm
Flexible Thickness Range
Available in thicknesses from 5mm to 11mm. Thin gauges enable tight-radius curves and decorative interior detailing.
Termite Resistant
Chemical Treatment
Chemically treated to provide resistance against termites and borers for enhanced durability in furniture and interior applications.
E2
Emission Standard
Manufactured using UF resin and classified under E2 emission standards for furniture and decorative interior applications.
Multi-Layer
Build-Up Construction
Multiple Flexi sheets can be laminated together to create thicker curved structures while maintaining dimensional stability.
Recommended Applications for Advance Ply Flexi
Curved Bed Back Panels
Suitable for upholstered and decorative bed back designs where smooth curved profiles are required without cracking or splitting.
TV Unit Curved Designs
Creates rounded TV unit structures, decorative media walls and curved entertainment furniture with a seamless finish.
Decorative Wall Panels
Used for bedroom feature walls, decorative panelling and curved interior design elements requiring flexible shaping.
Wardrobe Curved Shutters
Helps create curved wardrobe shutters, rounded edges and custom furniture profiles with consistent dimensional stability.
Living Room Arches & False Wall Curves
Suitable for decorative arches, curved partitions and false wall features used in modern interior designs.
Reception Desk (Dry Zone)
Used in curved reception counters and interior commercial fit-outs where flexibility and smooth finishing are important.
Retail Showroom Decorative Curves
Ideal for curved display structures, branded retail installations and decorative showroom elements.
Ceiling Design (Non-Leakage Area)
Suitable for decorative ceiling curves and architectural interior ceiling features in dry indoor environments.
Advance Ply Flexi - Technical Specifications
Specification | Value |
|---|---|
Physical Properties | |
| Grade Availability | BWP, BWR, MR Grade |
| Core Composition | Veneer aligned in single grain direction |
| Thickness Range | 5mm–11mm |
| Standard Size | 8 × 4 ft |
| Density | 360–370 kg/m³ |
| Moisture Content | 5%–15% |
| Moisture Resistance | More than 3 cycles moisture resistance |
| Flexibility | Excellent bending without cracking |
| Bending Radius | 5mm: 10–15 cm diameter 8mm: 12–25 cm 11mm: 30 cm |
Chemical Properties | |
| Resin Type | Urea Formaldehyde (UF) Resin |
| Emission Standard | Class E2 |
| Termite & Borer Resistance | Chemically treated to provide resistance against termites and borers for enhanced durability |
Mechanical Properties | |
| Screw Holding Capacity | More than 350 kgf |
| Glue Shear Strength (Dry State) | 1000 N |
| Dimensional Stability | Controlled swelling and shrinkage. Does not spring back after fixing on curved frame |
Fire and Water Resistance | |
| Moisture Resistance | More than 3 cycles moisture resistance |
| Recommended Usage Environment | Interior applications with normal humidity conditions |
Manufacturing | |
| Construction Type | Special flexible plywood construction |
| Grain Orientation | Single grain veneer alignment for bending performance |
| Surface Finish | Smooth surface suitable for laminates, veneers and paint finishes |
| Build-Up Construction | Multiple sheets can be laminated together for thicker curved structures |
Warranty | |
| Warranty | Manufacturer warranty included |
Advance Ply Flexi vs Other Advance Ply Plywood Range
| Feature | Flexi (this) | Gold | Gold FR |
|---|---|---|---|
| IS Standard | - | IS 303:2024 | IS 5509:2024 |
| Grade Type | Flexible Plywood, available in BWP / BWR / MR Grade | BWR Grade | Fire Retardant Grade |
| E1 Grade Resin | No, UF Resin with Class E2 emission | Yes | Yes |
| Fire retardant (IS 5509) | No | No | Yes |
| Density | 360–370 kg/m³ | 0.75 g/cm³ | 0.68 g/cm³ |
| Warranty | Manufacturer Warranty Included | 30 Years | 30 Year |
| Best for | Curved furniture, TV units, decorative wall panels, curved shutters and dry interior curved applications | General furniture, wardrobes, cabinets and interior furniture | Fire-safe interiors, hotels, hospitals, schools and commercial buildings |
Frequently Asked Questions About Advance Ply Flexi
What is Advance Ply Flexi used for?
Advance Ply Flexi is used for curved bed back panels, TV unit curved designs, decorative wall panels, wardrobe curved shutters, living room arches, false wall curves, reception desks (dry zone), retail showroom decorative curves, and ceiling design applications. Its flexible construction allows it to bend into curved shapes without cracking or splitting.
How does Advance Ply Flexi bend without breaking?
Advance Ply Flexi is manufactured with veneers aligned in a single grain direction, allowing the sheet to bend smoothly without cracking or splitting. Unlike conventional plywood designed for rigidity, Flexi is engineered specifically for curved interior applications. Its 5mm to 11mm thickness range further improves bending performance.
Which thickness of Advance Ply Flexi should I choose?
Advance Ply Flexi is available in thicknesses from 5mm to 11mm. Thinner sheets are suitable for tighter curves, while thicker sheets are commonly used for larger curved structures and decorative interior applications. The appropriate thickness depends on the required bending radius and project design.
Can multiple Flexi sheets be laminated together?
Yes. Multiple Advance Ply Flexi sheets can be laminated together to create thicker curved structures while maintaining dimensional stability. This approach is commonly used when greater panel thickness is required for decorative interior applications.
In which grades is Advance Ply Flexi available?
Advance Ply Flexi is available in BWP, BWR, and MR grades to suit different interior application requirements. The product maintains flexibility while offering grade options based on the moisture resistance needs of the project.
Advance Ply Flexi — Flexible Curved Plywood
Bends Without Cracking | 5–11 mm Thickness | BWP/BWR/MR Available
